Chemiluminescent Imaging System
High Performance Megapixel Cooled CCD camera. Applicable for Western blotting, Northern blotting, and Southern blotting.

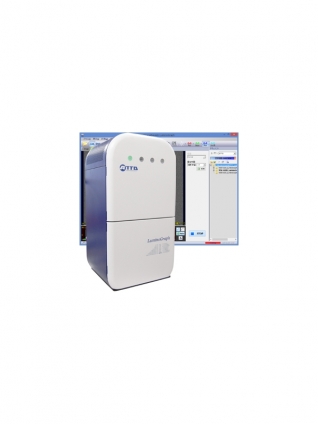

WSE-6100 LuminoGraph I
Image analysis software
It may add other optional equipments which is available for taking fluorescent gel image and improve the functions of this system.
Purpose and Application
- Chemiluminescence imaging of Western blotting
- Fluorescent imaging of fluorescent staining gels and fluorescent proteins (optional)
- Bright field imaging of CBB staining gels (optional)
- Quantitative analysis of samples from the image (Concentration and Molecular weight)
- Merge image of chemiluminescent image and prestained marker of membrane image
Product Summary
- WSE-6100H LuminoGraph: 1.4 mega pixels, -30°C CCD camera, F0.95 high sensitive lens
- WSE-6100Z LuminoGraph: 1.4 mega pixels, -30°C CCD camera, F1.2 zoom lens
- Control software " ImageSaver 6" (for Windows 8/7/Vista) is included
- Image analysis software "CS Analyzer" (for Windows 8/7/Vista) is optional
→Quantitative analysis and culculation of molecular weight function
→Merge image of luminescent image and colored image
→Zoom function of 2 images simultaneously up to 200%
→Image analysis for images captured with Ez-Capture series, Printgraph series and E-Graph
→Image analysis for images captured with digital camera and scanner
- Fluorescent imaging system・・・optional
→UV transilluminator (312nm)
→Filters (YA-3：560nm LP /OY:540nm LP) - White illuminator "FlatViewer"・・・optional
- Filter for bright field imaging "ND-0.1"・・・optional
- LED illuminator for fluorescent imaging "VISIRAYS-B"・・・optional
→Blue LED light source
→optional filter "SCF515" is suitable to capture the fluorescent image
→Available for GFP・SYBR Green/Safe・SYPRO Ruby・Flamingo Gel Stain・Gel Green images
Features
- AutoExposure
→ The suitable exposure time is automatically calculated and images are photographed and saved. - 16bit TIFF format
→general imaging file format
→convertible to JPEG and 8bit TIFF - Autocontrast・Inverse image
→Control software and image analysis software is available for autocontrast and inverse image functions - 1.4 mega pixels high sensitive cooled CCD camera enables high resolution and sensitivity
- F0.95 high sensitive lens (WSE-6100H) has a function for flat field calibration
- F1.2 zoom lens (WSE-6100Z) can be used to capture the images of small to large gels
Specifications
| Product Number | WSE-6100H/ H-CS | WSE-6100Z/ Z-CS |
|---|---|---|
| Product Name | LuminoGraph | |
| Camera | 1.4 mega pixels cooled CCD camera (-30°C) 1392 × 1040 pixels | |
| Lens | F0.95 25mm lens | F1.2 12.5-75mm zoom lens |
| Surface size | 100 × 75 ～ 145 × 105 mm | Max 220 × 165 mm |
| File format | 16bitTIFF/16bitCCD (Convert toJPEG, 8 bit TIFF and BMP) | |
| Suported OS | Windows 8/7(64/32bit) / Vista(64/32bit) / XP SP3 （ImageSaver5/CS Analyzer3） | |
| Power | AC100V-240V ± 10V | |
| Dimensions | 325(W) × 304(D) × 595(H) mm | |
| Weight | 20.0kg | |
LuminoGraph series
| Product Number | WSE-6100H | WSE-6100H-CS | WSE-6100Z | WSE-6100Z-CS |
|---|---|---|---|---|
| Cooled CCD camera (1.4 mega pixels) | ○ |
