Gel casting kit for ATTO Compact Gel
Easy setting & making a compact gel (Width 60 mm x Height 60 mm).

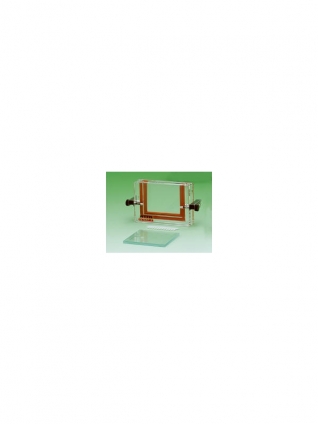

AE-7310 Compact Gel Cast
Purpose and Application
Gel casting kit for compact size (60 x 60 mm, thickness 0.75 mm) slab gel
Compatible electrophoresis apparatus:
Specifications
| Product number | AE-7310 |
|---|---|
| Product name | Compact Gel Cast |
| Gel size | 60 mm(W) x 60 mm(H )x 0.75 mm(D) (Compact slab size) |
| Number of gel | 1 piece |
| Plate | CAB-075 Notched plate/CB-00 Plain plate |
| Sample comb | CP075-12 Smiling-less compact comb 12-well (Well 2.9 mm width, 8μL/well) 0.75 mm thickness, PP mold |
| Material | Gel caster(Acrylic, Silicon, Stainless steel, Aluminum), Plate(Glass) |
| Dimension/Weight | 93 mm(W) × 45 mm(D) × 75 mm(H), 0.2 kg (Main unit only) |
| Component |
Main unit :1 Plate set (CAB-075 Notched plate/CB-00 Plain plate) :1 |
